Modern businesses face increasingly sophisticated security threats, making robust video surveillance essential for protecting assets, staff, and customers. Commercial CCTV installations have evolved significantly beyond simple recording devices into intelligent systems that provide real-time monitoring, analytics, and seamless integration with broader security infrastructures. Whether you're safeguarding a warehouse, retail premises, office complex, or manufacturing facility, understanding the fundamentals of professional CCTV deployment ensures your investment delivers maximum protection and compliance with UK regulations.
Understanding the Scope of Commercial CCTV Installations
Professional commercial CCTV installations encompass far more than mounting cameras and connecting cables. These systems require comprehensive planning, from initial site surveys through to ongoing maintenance protocols. The process begins with defining clear security objectives tailored to your specific operational requirements and risk profile.
Modern commercial surveillance systems typically include:
- High-resolution IP cameras with advanced imaging capabilities
- Network video recorders (NVRs) with substantial storage capacity
- Professional-grade cabling infrastructure
- Remote viewing capabilities for management oversight
- Integration with access control and alarm systems
- Compliance with GDPR and UK surveillance legislation
The distinction between residential and commercial installations lies primarily in scale, complexity, and regulatory requirements. Businesses must balance comprehensive coverage with data protection obligations, ensuring their systems capture necessary footage whilst respecting privacy rights. Strategic CCTV planning forms the foundation of any successful deployment, requiring detailed analysis of vulnerable areas, lighting conditions, and operational workflows.
Defining Security Objectives and Risk Assessment
Before any equipment is purchased, businesses must conduct thorough risk assessments to identify vulnerabilities requiring surveillance coverage. Different sectors face unique challenges. Retail environments prioritise point-of-sale areas and merchandise displays, whilst warehouses focus on loading bays and inventory storage zones. Manufacturing facilities require monitoring of production lines and restricted access areas.
A comprehensive security audit examines entry and exit points, high-value asset locations, blind spots, and areas with previous security incidents. This assessment informs camera quantities, specifications, and positioning strategies. Working with experienced professionals like those at Logic Fire and Security ensures your system design addresses actual threats rather than generic templates.
Documentation of security objectives provides a measurable framework for system performance. Clear goals might include reducing theft by a specific percentage, achieving complete perimeter coverage, or enabling rapid incident response times. These benchmarks guide both initial installation choices and subsequent system upgrades.
Planning Your Commercial CCTV Installation Project
Successful commercial CCTV installations demand meticulous planning across multiple dimensions. The planning phase determines system effectiveness, scalability, and return on investment. Rushing this stage often results in coverage gaps, inadequate infrastructure, or systems that fail to meet operational needs.
Site Survey and Coverage Mapping
Professional site surveys form the cornerstone of effective installations. Engineers physically assess your premises, documenting architectural features, lighting conditions, network infrastructure, and environmental factors. This hands-on evaluation reveals challenges that floor plans cannot capture, such as obstructions, reflective surfaces, or areas with extreme temperature fluctuations.
| Survey Element | Key Considerations | Impact on Installation |
|---|---|---|
| Building Layout | Entry points, corridors, open spaces | Camera quantities and positioning |
| Lighting Conditions | Natural light, artificial illumination, low-light areas | Camera specifications and supplementary lighting |
| Network Infrastructure | Existing cabling, switch capacity, bandwidth | Integration complexity and upgrade requirements |
| Power Availability | Electrical outlets, PoE capability, backup systems | Installation costs and reliability |
| Environmental Factors | Temperature, moisture, dust, vibration | Housing specifications and durability |
The survey process should involve key stakeholders, including security managers, IT personnel, and facility operators. Their insights regarding operational patterns, high-risk periods, and existing security concerns prove invaluable. Understanding the costs associated with different system configurations helps businesses make informed decisions about CCTV fitting costs versus long-term security benefits.
Camera Selection and Strategic Placement
Choosing appropriate cameras represents one of the most critical decisions in commercial CCTV installations. Modern IP cameras offer diverse capabilities, from basic monitoring to advanced analytics with facial recognition and behaviour detection. Your specific requirements dictate which features justify their additional costs.
Essential camera types for commercial applications:
- Fixed Dome Cameras – Discreet monitoring for corridors and general areas
- PTZ (Pan-Tilt-Zoom) Cameras – Active tracking of large spaces and perimeters
- Bullet Cameras – Highly visible deterrents for external mounting
- Fisheye Cameras – 360-degree coverage for central monitoring points
- Thermal Cameras – Detection in complete darkness or challenging conditions

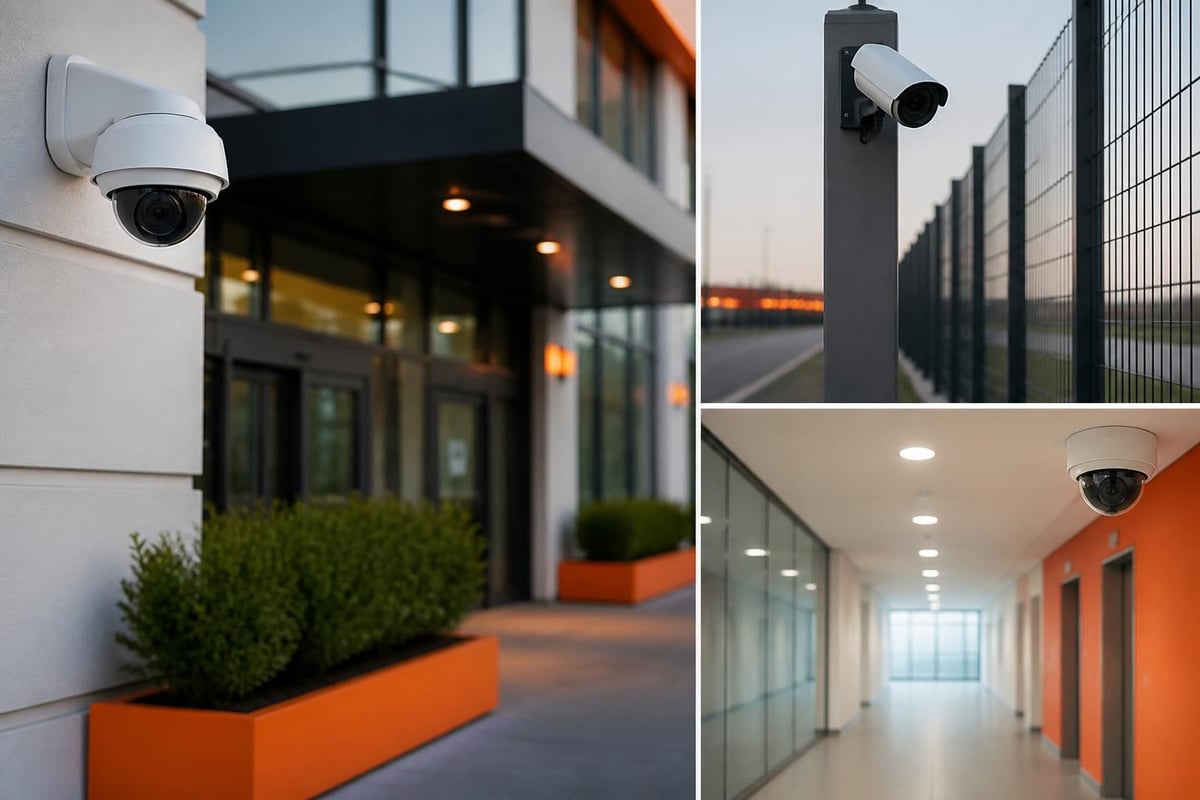

Optimal camera placement strategies prioritise critical areas whilst maintaining reasonable coverage density. Entrance and exit points require high-resolution cameras capable of capturing facial features. Cash handling areas, inventory storage, and equipment rooms benefit from multiple angles to eliminate blind spots. External cameras must withstand weather conditions whilst providing clear identification at relevant distances.
Mounting heights significantly affect footage quality. Cameras positioned too high produce poor facial identification, whilst low mounting invites tampering. Standard commercial installations typically place indoor cameras between 2.5 and 3 metres, adjusted for ceiling heights and room dimensions. External cameras require weatherproof housings rated to IP66 or higher, protecting against dust ingress and water jets.
Infrastructure Requirements for Commercial Systems
Robust commercial CCTV installations depend on reliable infrastructure supporting continuous operation. Unlike consumer systems, commercial deployments must maintain functionality through power failures, network disruptions, and hardware malfunctions. This resilience requires careful infrastructure planning across power, networking, and storage dimensions.
Network and Bandwidth Considerations
IP-based CCTV systems transmit substantial data volumes, particularly when recording in high definition or ultra-high definition. A single 4K camera streaming at 25 frames per second consumes approximately 15-20 Mbps of bandwidth. Multiply this across dozens of cameras, and network capacity quickly becomes a constraining factor.
Professional installations utilise dedicated VLANs (Virtual Local Area Networks) separating surveillance traffic from general business data. This segregation prevents camera streams from degrading other network services whilst enhancing security by isolating sensitive footage from broader network access. Businesses with existing data cabling infrastructure must assess whether current capacity supports additional surveillance loads or requires upgrades.
Power over Ethernet (PoE) technology simplifies installations by delivering both data and electrical power through standard network cables. PoE switches rated for 802.3at (PoE+) or 802.3bt (PoE++) support modern cameras with advanced features, eliminating separate power supplies for each device. However, total switch power budgets must accommodate all connected devices, requiring careful calculation during planning phases.
Storage Solutions and Retention Policies
Recording footage generates enormous data volumes requiring substantial storage capacity. Retention requirements vary by sector and specific security needs. Retail businesses typically maintain 30 days of footage, whilst sectors handling sensitive materials may require 90 days or longer. Understanding CCTV installation considerations includes calculating storage based on camera resolution, frame rates, compression codecs, and retention periods.
| Resolution | Compression | Daily Storage (per camera) | 30-Day Storage (10 cameras) |
|---|---|---|---|
| 1080p (2MP) | H.264 | 12-15 GB | 3.6-4.5 TB |
| 4MP | H.264 | 20-25 GB | 6.0-7.5 TB |
| 4K (8MP) | H.265 | 20-30 GB | 6.0-9.0 TB |
| 4K (8MP) | H.265+ | 12-18 GB | 3.6-5.4 TB |
Modern network video recorders incorporate RAID configurations protecting against drive failures. Enterprise-grade NVRs support hot-swappable drives, enabling maintenance without system downtime. Cloud storage solutions offer off-site backup capabilities, though ongoing subscription costs and bandwidth requirements must be factored into total cost of ownership calculations.
Compliance and Legal Considerations
UK businesses implementing commercial CCTV installations must navigate complex legal frameworks governing surveillance activities. The General Data Protection Regulation (GDPR) and Data Protection Act 2018 establish strict requirements for collecting, storing, and processing personal data captured through video surveillance. Non-compliance risks substantial fines and reputational damage.
GDPR Requirements and Signage
Organisations must demonstrate legitimate interests justifying surveillance, conduct Data Protection Impact Assessments (DPIAs) for extensive systems, and implement appropriate safeguards protecting recorded information. Clear signage informing individuals of surveillance must be displayed at all monitored entry points. These notices should identify the controller, purposes of processing, retention periods, and contact details for data protection enquiries.
GDPR compliance checklist for commercial CCTV:
- Document legitimate business interests justifying surveillance
- Complete DPIA for systems covering large areas or sensitive locations
- Implement access controls restricting footage viewing to authorised personnel
- Establish clear retention policies with automated deletion procedures
- Create procedures for subject access requests
- Appoint a Data Protection Officer where required
- Train staff on privacy obligations and proper system use
Commercial systems must incorporate privacy masking features obscuring areas outside legitimate surveillance scope, such as neighbouring properties or public footpaths visible from cameras. Regular audits ensure ongoing compliance as regulations evolve and business operations change. Working with professional security contractors familiar with UK legislation helps businesses navigate these complex requirements.
Integration with Existing Security Systems
Modern commercial CCTV installations rarely operate in isolation. Integration with access control systems, intruder alarms, and fire detection creates comprehensive security ecosystems responding intelligently to incidents. When an intruder alarm activates, integrated CCTV can automatically direct cameras toward the affected zone, begin recording at higher frame rates, and alert monitoring stations.
Access control integration enables visual verification of entry events, correlating card swipes or biometric authentication with corresponding footage. This capability proves invaluable during investigations, confirming whether authorised individuals actually entered or if credentials were shared inappropriately. The combination of these systems provides layered security far exceeding individual component capabilities.
Properties requiring both fire safety and security systems benefit from coordinated approaches. Facilities protected by fire alarm monitoring can leverage CCTV to verify alarm causes, distinguishing genuine emergencies from false activations. Similarly, buildings with specialised fire suppression systems like gas suppression installations require surveillance confirming areas are evacuated before discharge.
Installation Process and Best Practices
Professional commercial CCTV installations follow systematic processes ensuring quality, reliability, and longevity. Proper installation techniques prevent common issues like cable degradation, weather damage, and connectivity problems that plague DIY or rushed deployments. Following industry best practices separates systems delivering years of dependable service from those requiring constant troubleshooting.
Professional Installation Standards
Qualified installers begin with cable routing, selecting pathways protecting against physical damage, electromagnetic interference, and environmental exposure. Structured cabling follows standards minimising signal loss and maintaining data integrity. External cables require appropriate outdoor ratings, with connections sealed against moisture ingress. Cable management systems keep installations organised, simplifying future maintenance and troubleshooting.
Camera mounting demands precision, with brackets securely fixed to structural elements rather than cosmetic finishes. Installers verify viewing angles using test monitors before final positioning, ensuring coverage matches planning documentation. Weatherproof cameras receive additional attention, with cable entries sealed and mounting surfaces prepared to prevent water pooling.
Professional installation sequence:
- Pre-installation survey confirming plan feasibility
- Cable infrastructure deployment and termination
- Network switch configuration and VLAN setup
- Camera mounting and initial positioning
- System commissioning and functionality testing
- Staff training on operation and basic troubleshooting
- Documentation delivery including system diagrams and credentials
- Post-installation review and adjustment period
Quality installations include comprehensive testing phases verifying every camera produces clear footage under various lighting conditions, network connectivity remains stable during peak usage, and recording functions operate reliably. Installers configure motion detection zones, schedule recording parameters, and establish user permissions before handover.
Maintenance and Ongoing Support
Commercial CCTV installations require regular maintenance preserving optimal performance. Cameras accumulate dust, condensation, and debris affecting image quality. External housings experience weathering, with seals degrading over time. Network infrastructure requires firmware updates addressing security vulnerabilities and performance improvements. Professional maintenance contracts ensure these tasks receive proper attention rather than being neglected until failures occur.
Quarterly maintenance visits typically include camera cleaning, housing inspection, cabling checks, and system health diagnostics. Annual comprehensive reviews assess whether current configurations still meet security needs or require adjustments based on operational changes. Businesses with 24/7 CCTV monitoring services benefit from continuous oversight, with technical teams notified immediately of camera failures or recording interruptions.
Storage capacity monitoring prevents recording losses due to full drives. Automated systems alert administrators when storage approaches capacity, triggering archival processes or retention policy reviews. Regular backup testing confirms footage recoverability, whilst disaster recovery procedures document system restoration protocols following equipment failures or site disasters. Companies providing disaster restoration services often coordinate with security providers ensuring surveillance systems are prioritised during recovery operations.
Cost Factors and Budgeting
Understanding commercial CCTV installations costs enables realistic budgeting and appropriate system scoping. Prices vary dramatically based on system scale, component quality, installation complexity, and ongoing service requirements. Detailed cost considerations help businesses balance security needs against budget constraints.
Initial Investment Components
Camera costs range from £150 for basic 2MP fixed units to over £2,000 for advanced PTZ cameras with thermal imaging and analytics. Commercial-grade NVRs supporting 16-32 channels typically cost £800-£3,000 depending on storage capacity and processing power. Professional installation labour represents significant portions of total costs, particularly for complex multi-site deployments requiring extensive cabling work.
| System Scale | Camera Count | Estimated Equipment Cost | Installation Cost | Total Investment |
|---|---|---|---|---|
| Small Office | 4-8 cameras | £3,000-£6,000 | £1,500-£3,000 | £4,500-£9,000 |
| Medium Facility | 12-24 cameras | £8,000-£18,000 | £4,000-£8,000 | £12,000-£26,000 |
| Large Complex | 32-64 cameras | £20,000-£45,000 | £10,000-£20,000 | £30,000-£65,000 |
| Enterprise Campus | 100+ cameras | £60,000+ | £25,000+ | £85,000+ |
Infrastructure upgrades add costs when existing network equipment lacks capacity for additional cameras. Businesses requiring new structured cabling, PoE switches, or server infrastructure must include these expenses in project budgets. Specialist environments like timber frame buildings may require additional consideration during installation due to unique construction characteristics.
Ongoing Operational Costs
Beyond initial installation, commercial CCTV installations incur recurring expenses including maintenance contracts, electricity consumption, cloud storage subscriptions, and periodic upgrades. Annual maintenance agreements typically cost 10-15% of initial system value, providing quarterly inspections, emergency callouts, and firmware updates. Electricity costs vary by system size but generally remain modest compared to other commercial utilities.
Software licensing for advanced analytics, remote viewing applications, or video management systems adds ongoing expenses. Cloud storage solutions charge monthly fees based on camera counts and retention periods, typically ranging from £10-£50 per camera monthly. Businesses should model five-year total cost of ownership rather than focusing solely on initial capital outlay.
Selecting the Right Installation Partner
Choosing qualified professionals for commercial CCTV installations significantly impacts system performance, reliability, and compliance. The UK security industry contains both excellent providers and underqualified operators, making due diligence essential. Established firms with relevant accreditations, insurance coverage, and demonstrable experience deliver superior outcomes compared to lowest-cost alternatives.
Accreditations and Industry Standards
Reputable security companies hold NSI (National Security Inspectorate) or SSAIB (Security Systems and Alarms Inspection Board) accreditation, demonstrating adherence to industry standards and technical competence. These independent certification bodies conduct regular audits ensuring members maintain quality standards, employ qualified technicians, and follow proper business practices. Companies should provide evidence of public liability insurance and professional indemnity coverage protecting clients against installation defects or accidents.
Technical certifications from camera manufacturers indicate installers receive proper training on specific equipment. Certifications from major brands like Hikvision, Axis, or Hanwha ensure technicians understand advanced features and configuration requirements. This expertise proves particularly valuable when implementing sophisticated analytics or integrating multiple security systems.
Questions for potential installation partners:
- What industry accreditations do you hold?
- Can you provide references from similar installations?
- What warranty coverage do you offer on equipment and labour?
- How do you handle emergency callouts and system failures?
- What training will you provide our staff?
- Do you offer maintenance contracts and remote monitoring?
Businesses should request detailed proposals outlining equipment specifications, installation methodologies, project timelines, and itemised costs. Comparing multiple quotations reveals whether providers genuinely understand requirements or simply offer standard packages. The lowest quote rarely represents best value when considering long-term performance and support quality.
Implementing effective commercial CCTV installations requires careful planning, professional execution, and ongoing maintenance to deliver lasting security benefits. From initial site surveys through system commissioning and beyond, every stage demands attention to detail and adherence to best practices. Logic Fire and Security brings decades of experience designing and deploying comprehensive surveillance solutions for businesses across the UK, combining technical expertise with deep understanding of compliance requirements and operational needs. Whether you're protecting a single site or managing security across multiple locations, Logic Fire and Security delivers tailored systems that safeguard your assets, people, and reputation whilst ensuring regulatory compliance.
